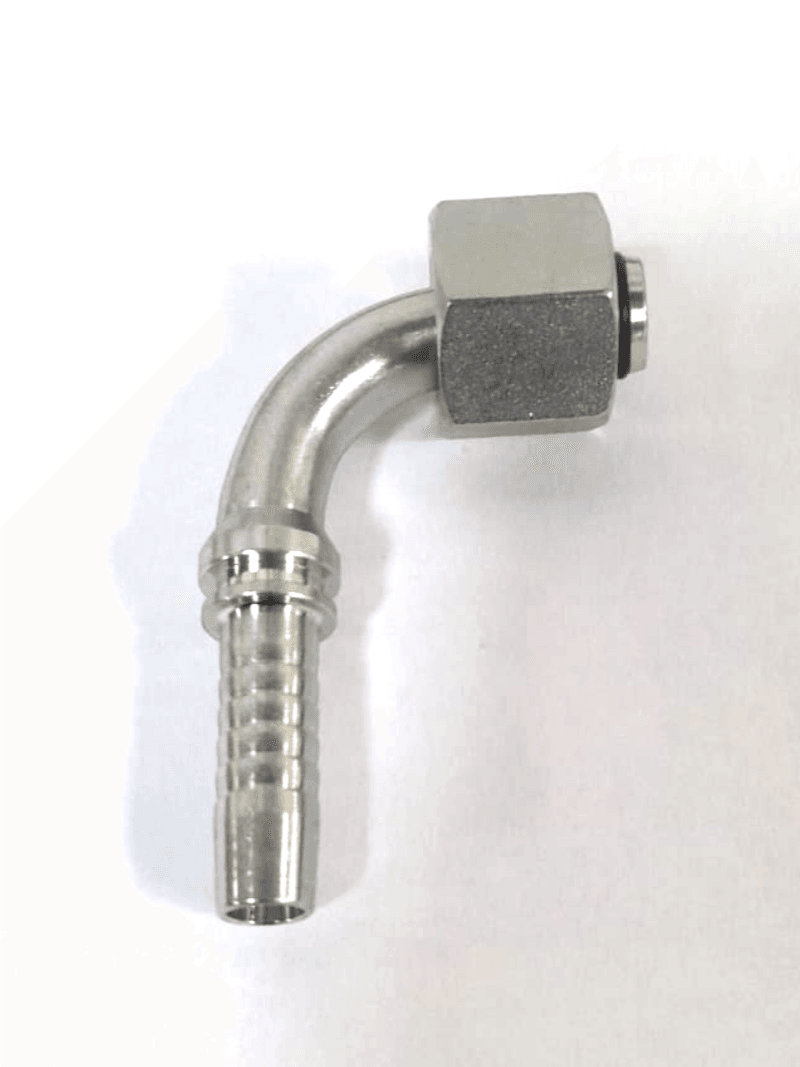

20591 series DKOS 90 degree metric female 24° cone with O-ring and hose tail (T1 to H1)

Metric Female 24° Cone Heavy With O-Ring – DKOS 90°

Part Number	Thread (T1)	Hose Diameter (H1) (inch)	Hose Diameter (H1) (mm)
20591-16-04	16×1.5	1/4	6
20591-18-04	18×1.5	1/4	6
20591-20-06	20×1.5	3/8	10
20591-22-06	22×1.5	3/8	10
20591-24-08	24×1.5	1/2	13
20591-30-10	30×2	5/8	16
20591-30-12	30×2	3/4	19
20591-36-12	36×2	3/4	19
20591-36-16	36×2	1	25
20591-42-16	42×2	1	25
20591-52-20	52×2	1 1/4	32
