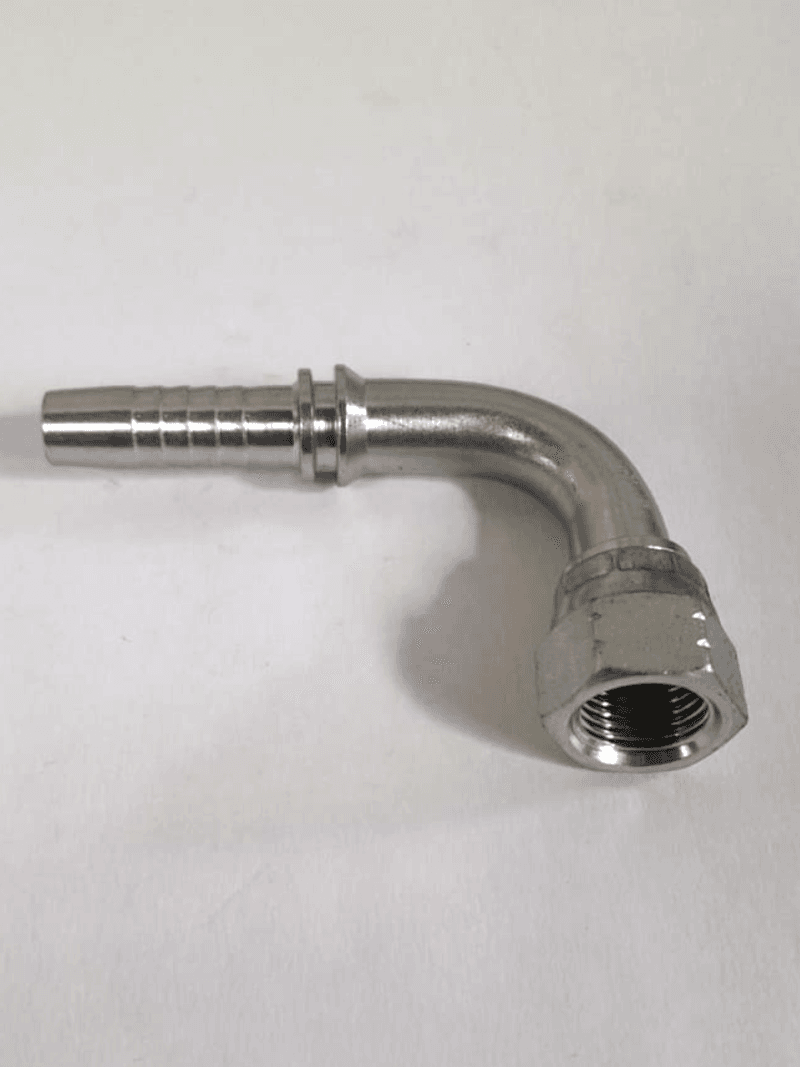

26791 series JIC female 37° swivel 90 degree hose barb elbow (T1 to H1)

JIC Female 37° – DKJ 90°

Part Number	Thread (T1)	Hose Diameter (H1) (inch)	Hose Diameter (H1) (mm)
26791-04-04-90	7/16 – 20	1/4	6
26791-05-04-90	1/2 – 20	1/4	6
26791-06-04-90	9/16 – 18	1/4	6
26791-06-05-90	9/16 – 18	5/16	8
26791-06-06-90	9/16 – 18	3/8	10
26791-08-06-90	3/4 – 16	3/8	10
26791-08-08-90	3/4 – 16	1/2	13
26791-10-06-90	7/8 – 14	3/8	10
26791-10-08-90	7/8 – 14	1/2	13
26791-10-10-90	7/8 – 14	5/8	16
26791-12-08-90	1 1/16 – 12	1/2	13
26791-12-10-90	1 1/16 – 12	5/8	16
26791-12-12-90	1 1/16 – 12	3/4	19
26791-12-16-90	1 1/16 – 12	1	25
26791-14-12-90	1 3/16 – 12	3/4	19
26791-14-16-90	1 3/16 – 12	1	25
26791-16-12-90	1 5/16 – 12	3/4	19
26791-16-16-90	1 5/16 – 12	1	25
26791-20-16-90	1 5/8 – 12	1	25
26791-20-20-90	1 5/8 – 12	1 1/4	32
26791-24-20-90	1 7/8 – 12	1 1/4	32
26791-24-24-90	1 7/8 – 12	1 1/2	38
26791-32-32-90	2 1/2 – 12	2	50
