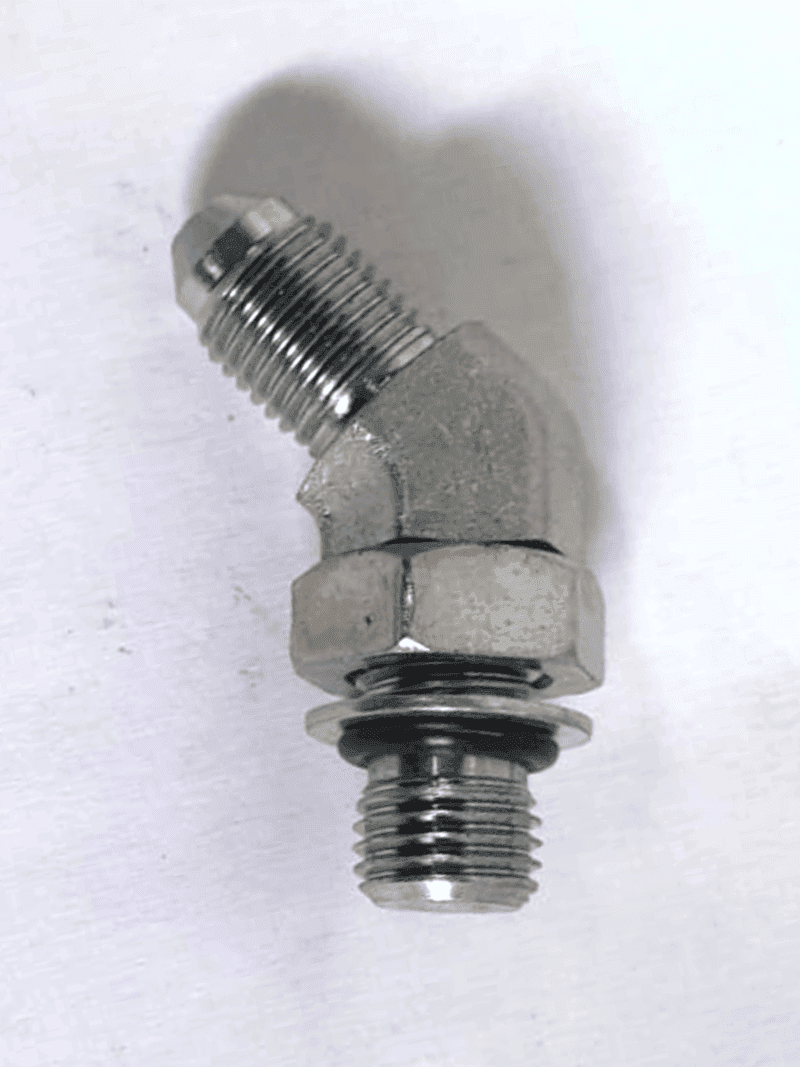

Adjustable 45 degree JIC to SAE O-ring male hydraulic elbow

Adjustable Elbow JIC to SAE O-Ring 45°

Part Number	JIC Thread (T1)	SAE Thread (T2)
1J04-04-04	7/16 – 20	7/16 – 20
1J04-04-05	7/16 – 20	1/2 – 20
1J04-04-06	7/16 – 20	9/16 – 18
1J04-04-08	7/16 – 20	3/4 – 16
1J04-05-04	1/2 – 20	7/16 – 20
1J04-05-05	1/2 – 20	1/2 – 20
1J04-05-06	1/2 – 20	9/56 – 18 (screenshot shows slight blur, but consistent with “9/16-18”)
1J04-06-04	9/16 – 18	7/16 – 20
1J04-06-05	9/16 – 18	1/2 – 20
1J04-06-06	9/16 – 18	9/16 – 18
1J04-06-08	9/16 – 18	3/4 – 16
1J04-06-10	9/16 – 18	7/8 – 14
1J04-08-06	3/4 – 16	9/16 – 18
1J04-08-08	3/4 – 16	3/4 – 16
1J04-08-10	3/4 – 16	7/8 – 14
1J04-08-12	3/4 – 16	1 1/16 – 12
1J04-10-06	7/8 – 14	9/16 – 18
1J04-10-08	7/8 – 14	3/4 – 16
1J04-10-10	7/8 – 14	7/8 – 14
1J04-10-12	7/8 – 14	1 1/16 – 12
1J04-12-08	1 1/16 – 12	3/4 – 16
1J04-12-10	1 1/16 – 12	7/8 – 14
1J04-12-12	1 1/16 – 12	1 1/16 – 12
1J04-12-16	1 1/16 – 12	1 5/16 – 12
1J04-16-12	1 5/16 – 12	1 1/16 – 12
1J04-16-16	1 5/16 – 12	1 5/16 – 12
1J04-16-20	1 5/16 – 12	1 5/8 – 12
1J04-20-16	1 5/8 – 12	1 5/16 – 12
1J04-20-20	1 5/8 – 12	1 5/8 – 12
1J04-24-20	1 7/8 – 12	1 5/8 – 12
1J04-24-24	1 7/8 – 12	1 7/8 – 12
