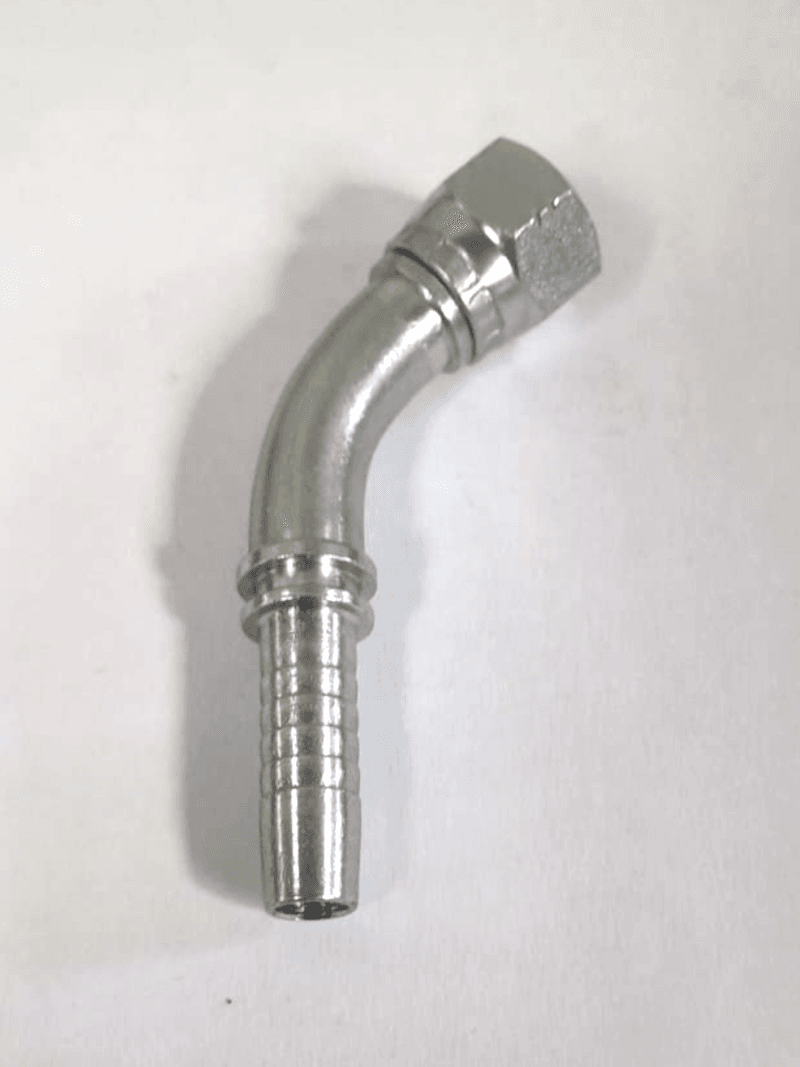

26741 series JIC female 37° swivel 45 degree hose barb elbow (T1 to H1)

JIC Female 37° – DKJ 45°

Part Number	Thread (T1)	Hose Diameter (H1) (inch)	Hose Diameter (H1) (mm)
26741-04-04-45	7/16 – 20	1/4	6
26741-05-04-45	1/2 – 20	1/4	6
26741-06-04-45	9/16 – 18	1/4	6
26741-06-05-45	9/16 – 18	5/16	8
26741-06-06-45	9/16 – 18	3/8	10
26741-08-06-45	3/4 – 16	3/8	10
26741-08-08-45	3/4 – 16	1/2	13
26741-08-10-45	3/4 – 16	5/8	16
26741-10-06-45	7/8 – 14	3/8	10
26741-10-08-45	7/8 – 14	1/2	13
26741-10-10-45	7/8 – 14	5/8	16
26741-10-12-45	7/8 – 14	3/4	19
26741-12-08-45	1 1/16 – 12	1/2	13
26741-12-10-45	1 1/16 – 12	5/8	16
26741-12-12-45	1 1/16 – 12	3/4	19
26741-12-16-45	1 1/16 – 12	1	25
26741-14-12-45	1 3/16 – 12	3/4	19
26741-14-16-45	1 3/16 – 12	1	25
26741-16-12-45	1 5/16 – 12	3/4	19
26741-16-16-45	1 5/16 – 12	1	25
26741-20-16-45	1 5/8 – 12	1	25
26741-20-20-45	1 5/8 – 12	1 1/4	32
26741-24-20-45	1 7/8 – 12	1 1/4	32
26741-24-24-45	1 7/8 – 12	1 1/2	38
26741-32-32-45	2 1/2 – 12	2	50
