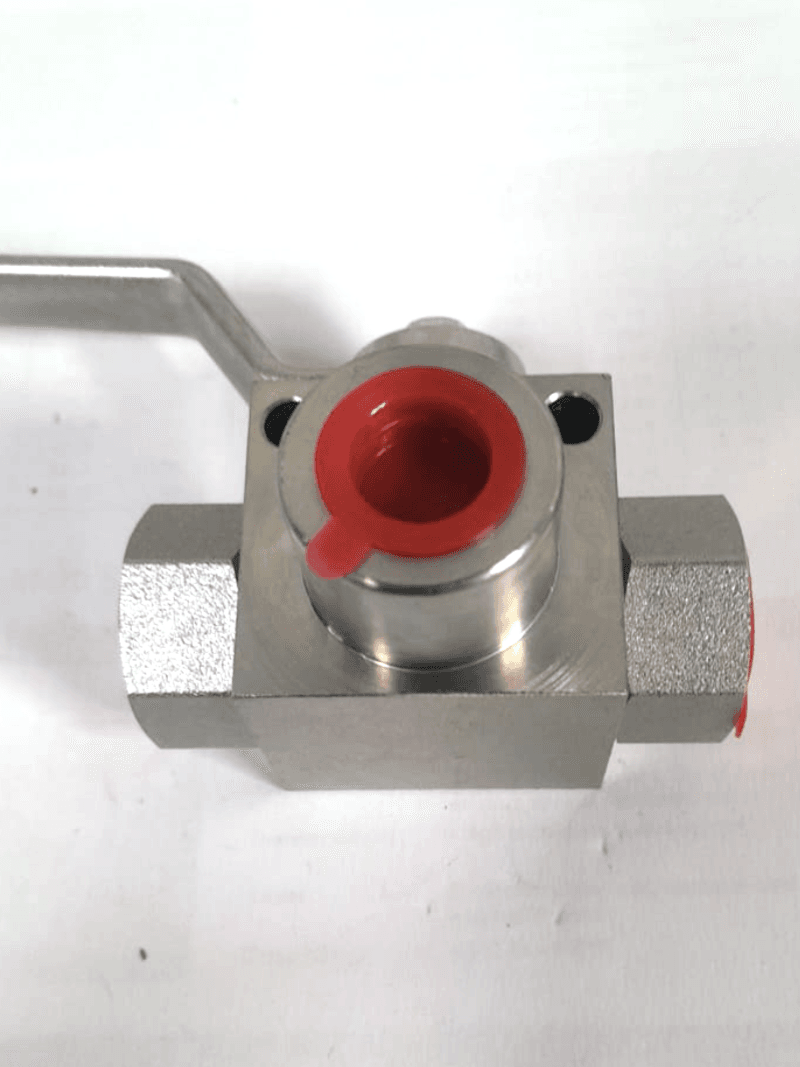

3-Way High Pressure Ball Valve – L Porting (BV-3W-HP Type)

Part Number	Max Pressure (bar)	DN (mm)	BSP Port Size	LW	L	L1	B	H	H1	H2	SW1	SW2
BV-3W-HP-08-L	500	4	1/8	6	69	40	26	45	13.5	33	9	22
BV-3W-HP-14-L	500	6	1/4	6	69	40	26	45	13.5	33	9	22
BV-3W-HP-38-L	500	10	3/8	10	72	42	32	49	16	36	9	27
BV-3W-HP-12-L	400	13	1/2	12	83	48	35	49	17	44	9	30
BV-3W-HP-34-L	315	20	3/4	20	95	60	48	70	25	55	12	41
BV-3W-HP-1-L	315	25	1	25	113	65	57	79	28.5	64	12	50
BV-3W-HP-1¼-L	315	32	1 1/4	32	110	84	75	101	37.5	84	14	60
BV-3W-HP-1½-L	315	40	1 1/2	38	130	91	85	112	42.5	95	14	70
BV-3W-HP-2-L	315	50	2	48	140	100	105	131	52.5	112	14	80
